๐ก How To Assemble Your Naturally KIDS Lamp
Important
ย Please DO NOT FORCE the rods
onto the lampshade frame ringsย
If a rod does not easily click into place,
please use a nail file to lightly smooth out
the rough sides of the rodโs tip OR the corresponding hole.
Steps To Assemble The Lampshade Frame
-
- Lay out all the lampshade frame parts onto the table
- Make sure the SYMBOLS on circular frames are facing UPWARDS
-
Assembling the Smaller (Inner) Frame (A)
-
Assembling the Larger (Outer) Frame (B)
IMPORTANT!ย Align Slanted Rod Tips With the Circular Frame Parts
- Attaching Outer and Inner Lampshade Frame Parts
- TROUBLESHOOTING
- Spreading the Fabric Over The Lampshade Frame
- Preparing the Plush Toy Lamp Base
- Installing the Lampshade Onto the Base
- WARNING!
Steps To Assemble The Lampshade Frame
1. Lay out all the lampshade frame parts onto the table
2. Make sure the SYMBOLS on circular frames are facing UPWARDS! ๐
3. Assembling the Smaller (Inner) Frame (A)
- Use two rings (parts 5 & 6 on the scheme above) and three SHORTER rods (part 2 on the scheme).
- First, insert one end of each rod into the smaller ringโs holes.
- Then, place the larger ring on the table and insert the three rods attached to the smaller ring into the middle holes on the larger ringย (the hole in the middle of each group of three holes).
4. Assembling the Larger (Outer) Frameย (B)
- Use two halves of a large circular frame (parts 3 & 4) and SIX LONGER rods.
- First, attach both halves to assemble a ring on the table surface.
- Then,ย insert the 6 rods (part 1) into the holes in the assembled ring, keeping the ring flat on the table surface.
4.1 IMPORTANT!
Align Slanted Rod Tips With the Circular Frame Parts
Please note that the Smaller (Inner)ย frameโs assembly holes on the thinner ring ANDย rod tips are slightly slanted!
Please align them properly before clicking into place, as shown on the images below:ย
4.2 IMPORTANT!
Align Slanted Rod Tips With the Circular Frame Parts
Please note that theย Larger (Outer) frameโs assembly holes AND other side of larger rod tips are also slanted!
Please align them properly before clicking into place, as shown on the images below:ย
5. Attaching Outer and Inner Lampshade Frame Parts
- Please keep the assembled outer frame (B) with 6 rods pointing up on the table surface.
- Insert the assembled inner frame (A) into the space between the 6 rods of the larger frame,ย keeping the inner cone-shaped frame with its larger base facing upwards.
- GENTLY insert the upper long rod tips into the holes of the larger inner frameโs ring.
5.1 IMPORTANT! Align Slanted Rod Tips With the Circular Frame Parts
Please note that the Larger (Outer) frameโs assembly holes AND larger rod tips are slanted! Please align them properly before clicking into place, as shown on the image below:ย
TROUBLESHOOTING
ย Please DO NOT FORCE the rods
onto the lampshade frame ringsย
If a rod does not fit into the hole:
-
Check if you properly aligned the slanted rod tips to the slanted holes asย shown on drawings above.ย
(if you misaligned them, the tips of the misaligned rods with not be flat on the other side of the ring surface, but will stick out slightly with the misaligned corner).
-
If everything aligned properly,ย DO NOT force or apply pressure!
a) You can try fitting the rod into another hole.
b) If that did not help, take a nail file and gently smooth out the rough spot on the rodโs tip OR the corresponding hole and try again.
Fully Assembled Lampshade Frame:
Installing the Lamp Shade onto the Lamp
1. Spreading the Fabric Over The Lampshade Frame
- Gently straighten the lampshade fabric with your hands.
- Stretch it lightly and pull it over the assembled lampshade frame, making sure it fits smoothly and evenly.
2. Preparing the Plush Toy Lamp Base
- Carefully straighten toy animalโs limbs and tail (if there is one ๐ค).
- Make sure the base stands balanced on the table surface with all its paws touching the ground.
-
Please note, that some lamp model bases come in the shape of a sitting animal. In this case, make sure the body of the animal and the lampโs rod are straightened.
3. Installing the Lampshade Onto the Base

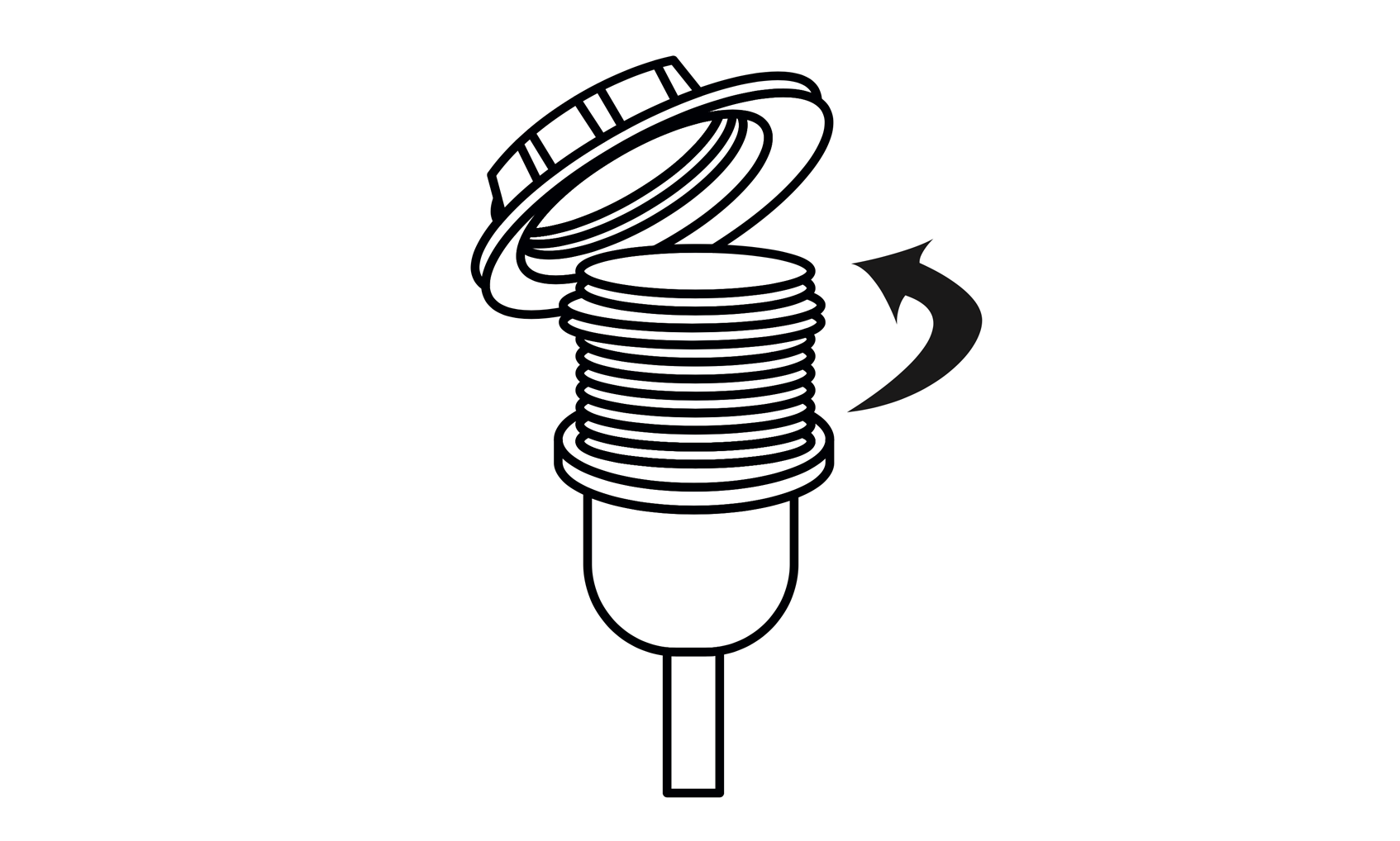

- Remove (unscrew) the coil from the lamp socket:
- Place the lampshade onto the base.
- Reattach the coil to the base, securing the lampshade in place:
- Install the LED lightbulb included:
โ ๏ธ WARNING โ ๏ธ
- ย Please use LED lamps up to 12 watts only!ย
- Ensure the voltage used isย 110โ120V, 60Hz.
